Vibrating Screen

1.
   01 / 06

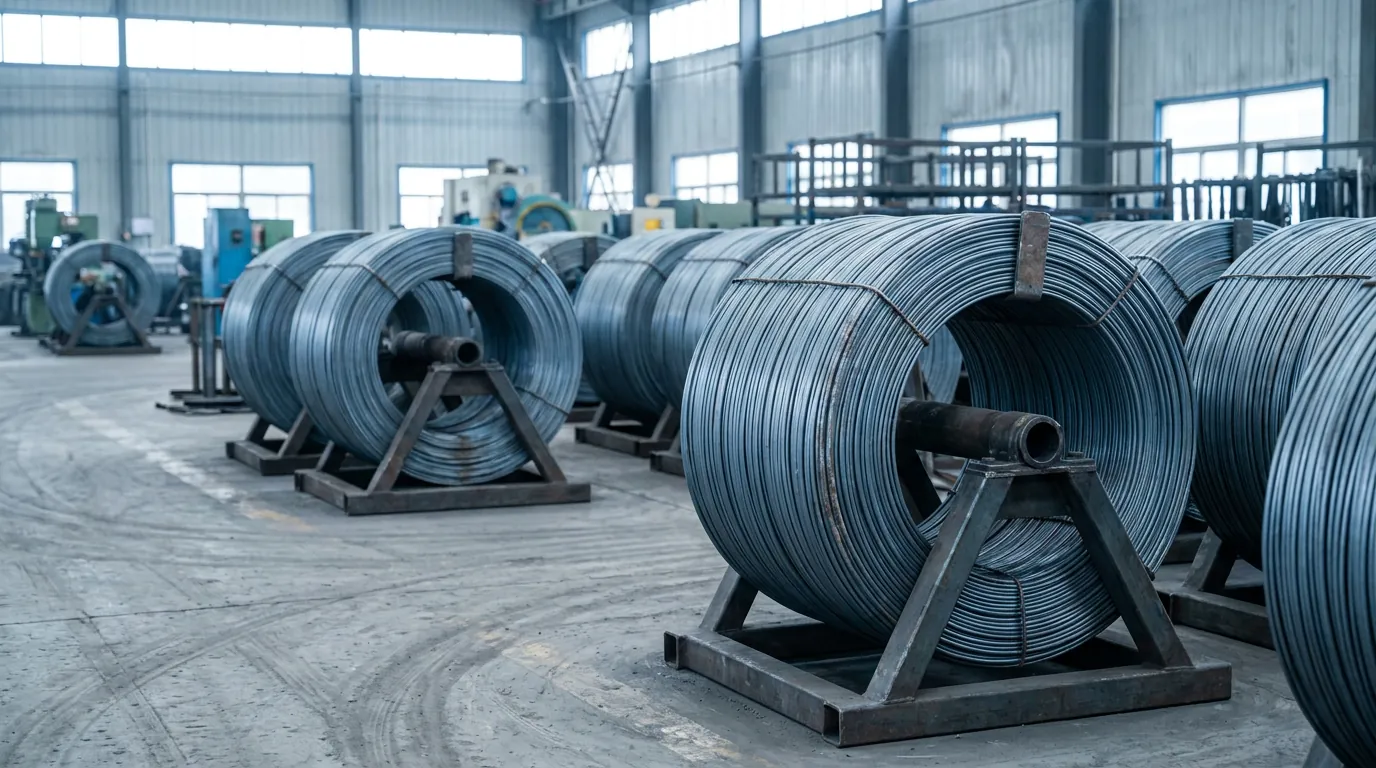

   Wire selection

   High-carbon and spring steel wire is chosen for the abrasion and load your screen will face.

2.
   02 / 06

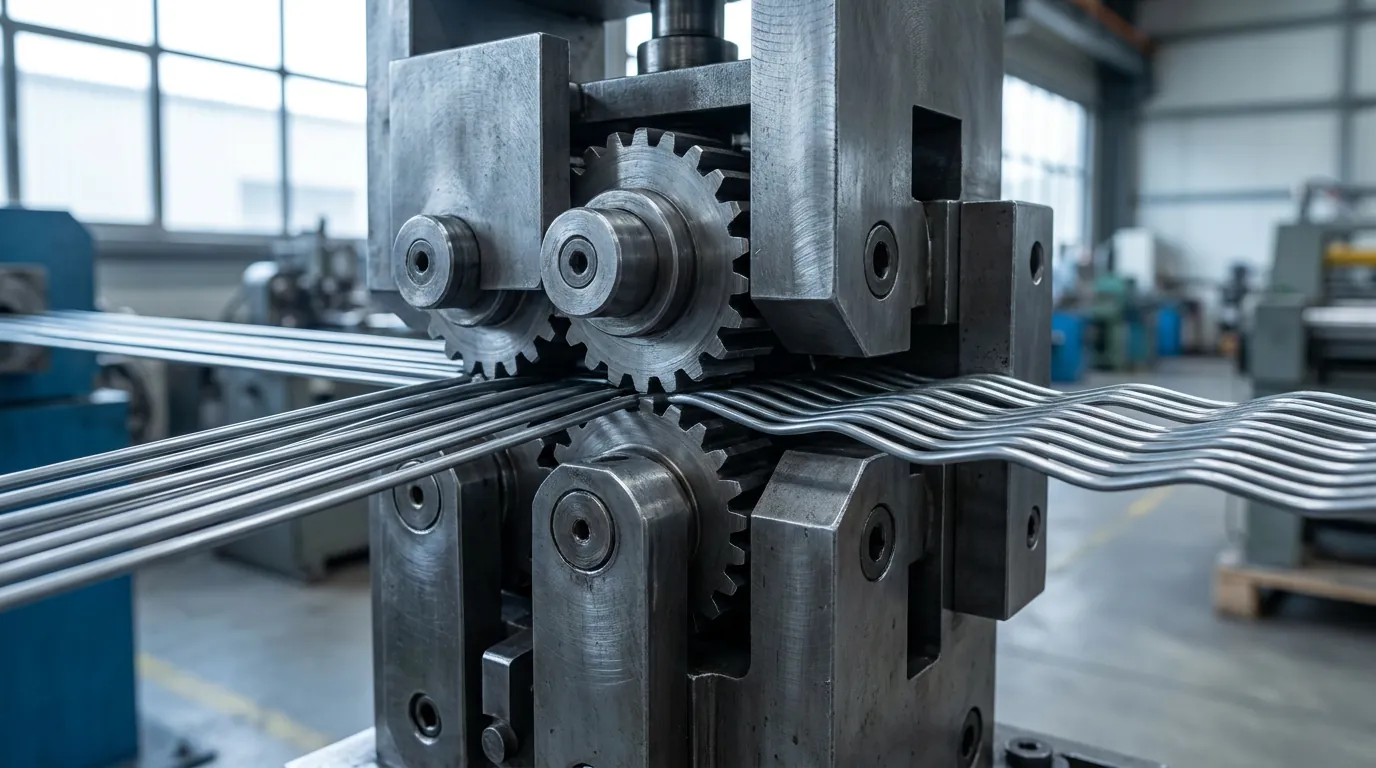

   Crimping

   Wires are pre-crimped so they lock together and hold the aperture under vibration.

3.
   03 / 06

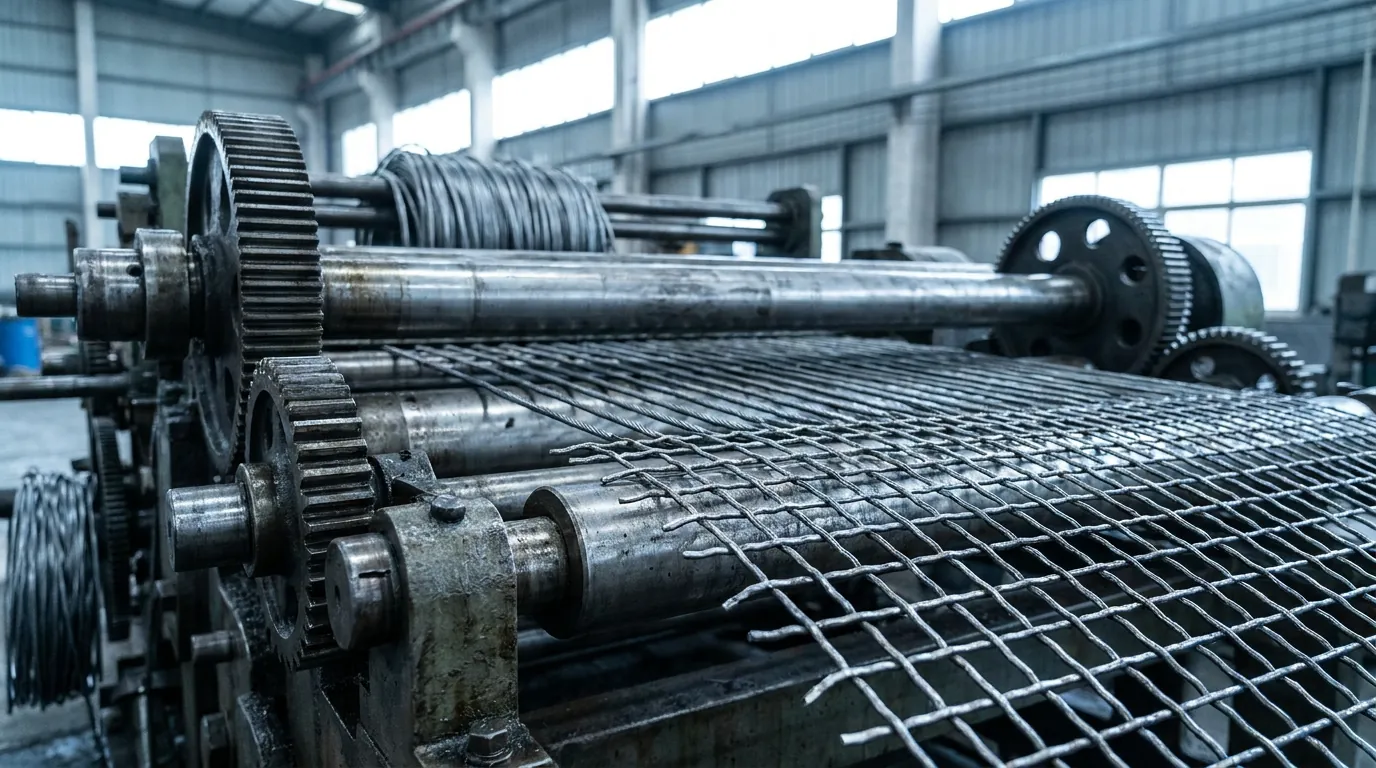

   Weaving

   Crimped wires are woven into square or slotted openings sized to your cut point.

4.
   04 / 06

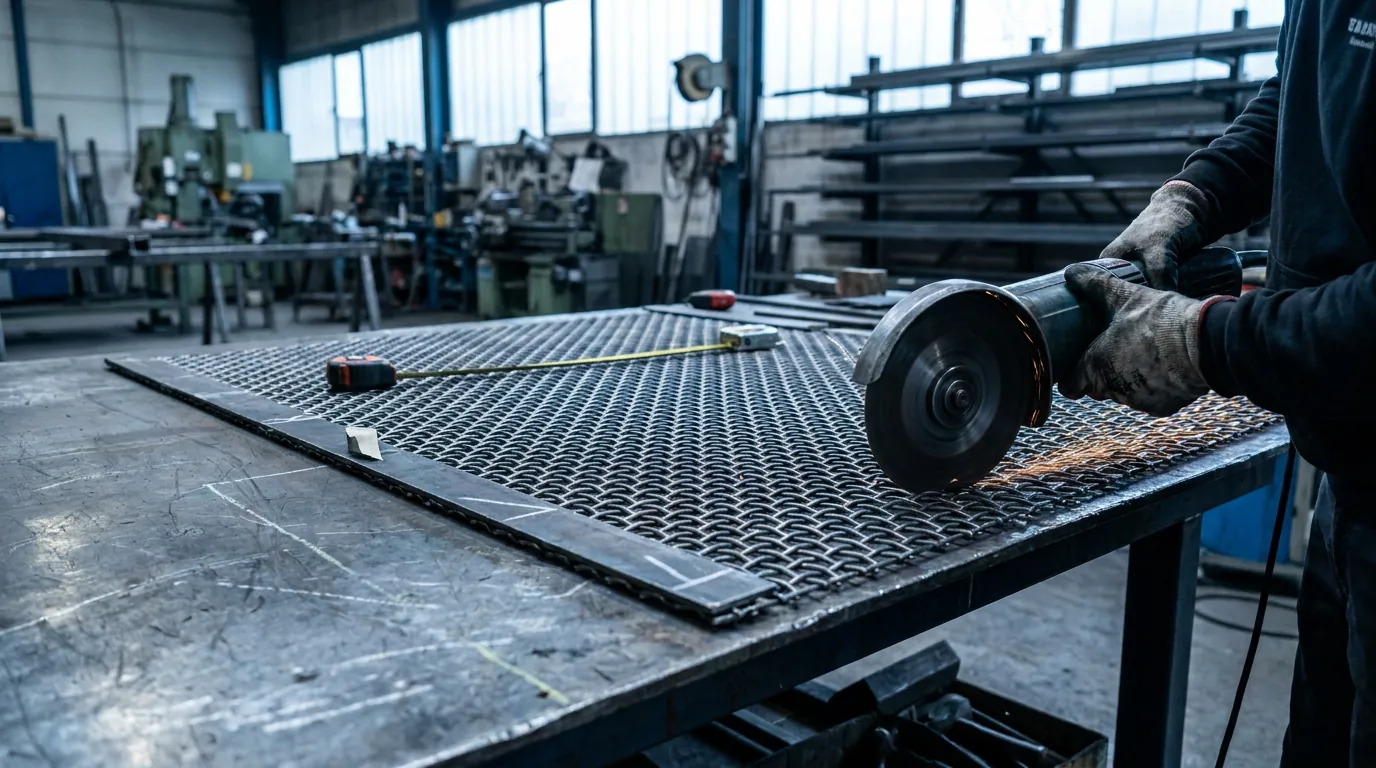

   Cutting to size

   The woven panel is measured and cut to your deck dimensions.

5.
   05 / 06

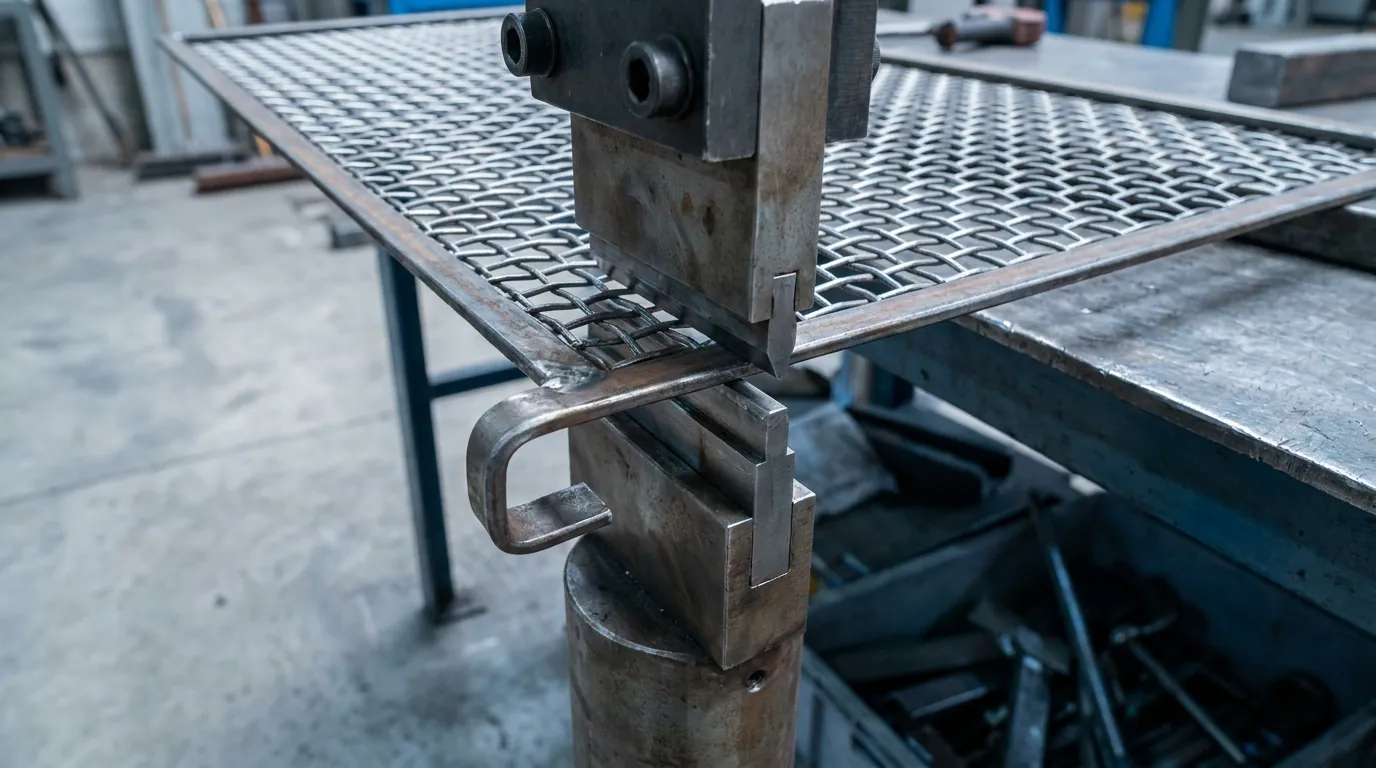

   Hook forming

   Edges are bent into hook strips so the screen can be tensioned evenly.

6.
   06 / 06

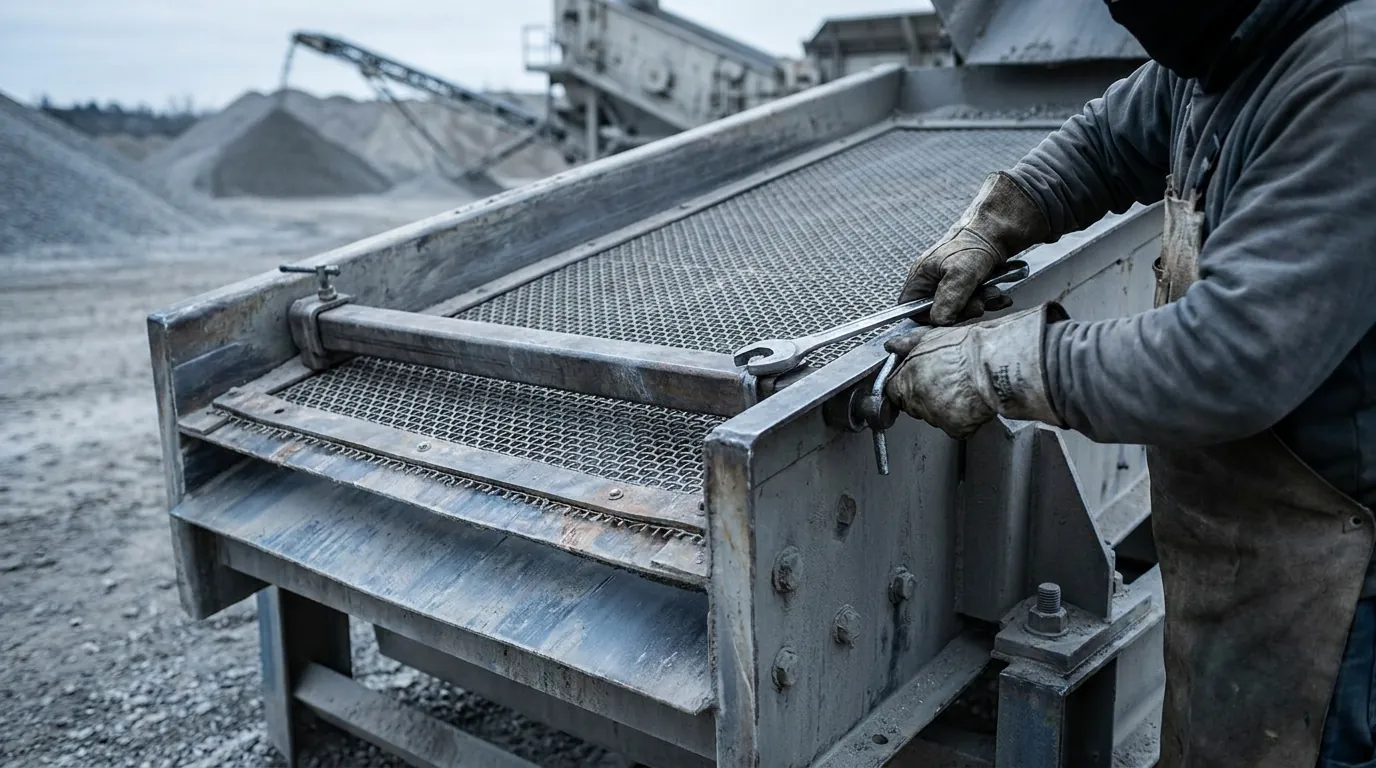

   Tensioning & clamping

   On site, the screen is hooked onto the deck and clamped tight, ready to run.

Illustrative images
